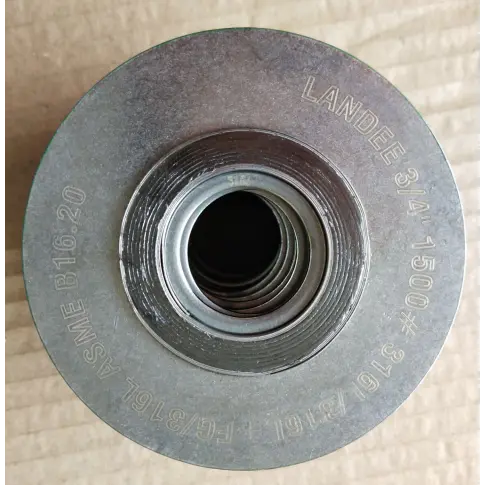

ASME B16.20 SW Gaskets, SS 316L, 3/4 Inch, DN20, 1500 LB, RF
Previous: Graphite Filled SW Gasket, SS 304 Inner Ring, 24 Inch, DN600
Key Specifications / Features
 Model No.: LPF-20240118-PG-01    Hits: 0
The ASME B16.20 Spiral Wound Gasket, featuring SS 316L inner and outer rings with SS 316L+FG filler, is designed for high-pressure applications. With a size of 3/4 inch (DN20) and a pressure rating of Class 1500 LB and PN250, this gasket provides a reliable, leak-proof seal. Its raised face (RF) design ensures secure installation in demanding environments.
Request a quoteShare
Tags: ASME B16.20 Gasket,Spiral Wound Gasket,SS 316L Gasket,3/4 Inch Gasket,Class 1500 LB Gasket.

Detail Information

Product Name: ASME B16.20 Spiral Wound Gaskets, RF
Size: 3/4 Inch, DN20
Pressure: Class 1500 LB, PN250
Standard: ASME B16.20
Material:
Inner Ring: SS 316L
Filler: SS 316L + FG
Outer Ring: SS 316L



Post URL: https://www.landeepipefitting.com/asme-b16-20-sw-gaskets-ss-316l-3-4-inch-dn20-1500-lb-rf.html
Landee is a professional industrial pipe fitting manufacturer and be well accepted by customers all over the world, we has been producing Pipe Fitting for a variety of applications since 1985. welcome to access our website: https://www.landeepipefitting.com.
