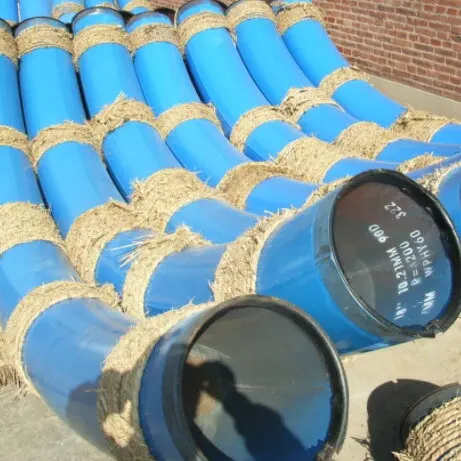

ASTM A860 WPHY 60 Hot Induction Bend, 7D, 18 Inch, FBE Coated
Previous: ISO 2531 Double Socket Bend, EN 545, GOST 2531, 5525, PN10-PN40
Next: ANSI B16.49 Hot Induction Bend, ASTM A860 WPHY 60, 18 Inch
Key Specifications / Features
 Model No.: LPF-240418-PB-01    Hits: 8
Explore our selection of 7D hot induction bends crafted from high-quality ASTM A860 WPHY 60 material, offering exceptional strength and corrosion resistance. Available in an 18-inch size with a wall thickness of 10.21 mm, these bends come in various bend angles ranging from 15 to 180 degrees and radius options from 2.5D to 10D. With a durable surface coating, they are ideal for demanding industrial applications.
Request a quoteShare
Tags: ASTM A860 WPHY 60 Bend,Hot Induction Bend,18 Inch Induction Bend,DN450 Induction Bend,FBE Coated Bend,7D Induction Bend.

Detail Information


Product Name: 7D Hot Induction Bend
Size: 18 Inch, DN450
Material: ASTM A860 WPHY 60
Wall Thickness: 10.21 MM
Bend Radius: 2.5D, 3D, 4D, 5D, 6D, 7D, 8D, 9D, 10D
Bend Angle: 15, 30, 45, 60, 90, 135, 180 deg
Surface: Light Oiling, Black Painting, PE, 3PE Anti-corrosion Coating, FBE Coated

Product Range

Size: 1/2 - 72 Inch, DN15-DN1800
WT: <120 MM, SCH 40, SCH 80, SCH XXS
Standard: ASME B16.9
Materials: ASTM A860 WPHY 42, ASTM A860 WPHY 46, ASTM A860 WPHY 52, ASTM A860 WPHY 60, ASTM A860 WPHY 65, ASTM A860 WPHY 70

7D Hot Induction Bend


ASTM A860 WPHY 60 Hot Induction Bend

FBE Coated Bend



Post URL: https://www.landeepipefitting.com/astm-a860-wphy-60-hot-induction-bend-7d-18-inch-fbe-coated.html
Landee is a professional industrial pipe fitting manufacturer and be well accepted by customers all over the world, we has been producing Pipe Fitting for a variety of applications since 1985. welcome to access our website: https://www.landeepipefitting.com.
