Home >Products >Pipe Reducer >Ductile Iron Pipe Reducer, ISO 2531, DN1000 * DN800, FlangedDuctile Iron Pipe Reducer, ISO 2531, DN1000 * DN800, Flanged
Key Specifications / Features
 Model No.: LPF-20240927-PR-01    Hits: 13

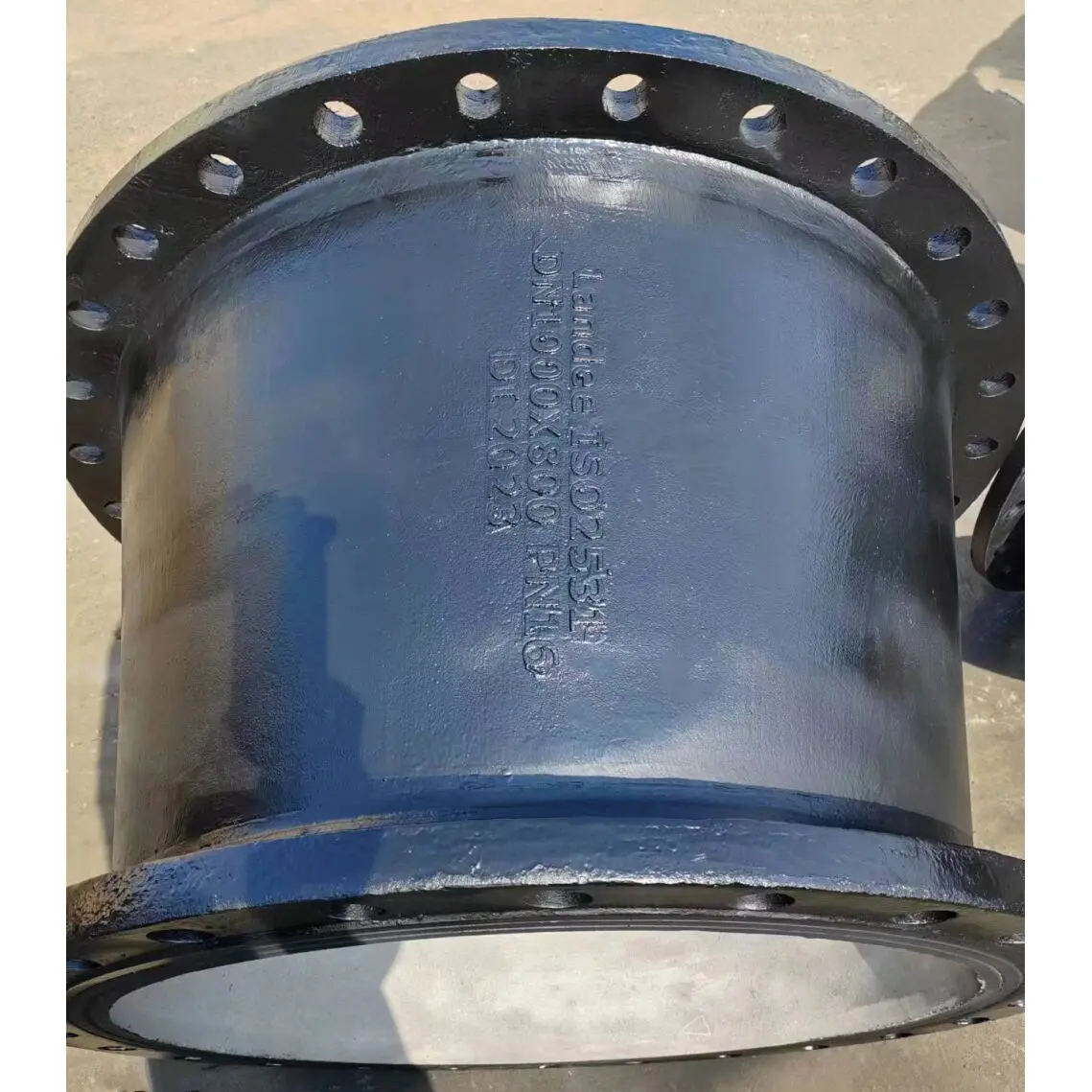

The Ductile Iron Pipe Reducer, manufactured in accordance with ISO 2531 standards, features a transition from DN1000 to DN800. It is designed with an external zinc and bitumen coating for enhanced corrosion resistance, while the internal cement-sand lining provides additional durability. Supplied with gaskets and fasteners, this reducer is ideal for use in water and wastewater applications.

Detail Information


Product Name: Ductile Iron Pipe Reducer
Standard: ISO 2531
Material: Ductile Iron (SG Iron)
Dimensions: DN1000 * DN800
End: Double Flanged, PN16
Coating: Externally Zinc Rich Coating 200 g/㎡+ Bitumen Layer 80 um, Internally Cement-sand Lining 7mm.
Spare Parts: With Gaskets and Fasteners




Post URL: https://www.landeepipefitting.com/ductile-iron-pipe-reducer-iso-2531-dn1000-dn800-flanged.html
Landee is a professional industrial pipe fitting manufacturer and be well accepted by customers all over the world, we has been producing Pipe Fitting for a variety of applications since 1985. welcome to access our website: https://www.landeepipefitting.com.
