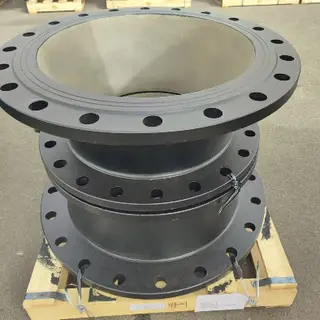

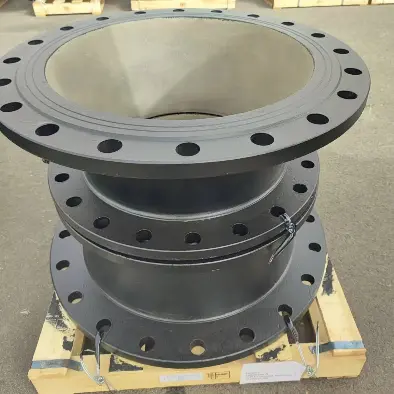

EN 545, EN 598 Reducer, Ductile Iron, 8 x 6 IN, PN16, Flanged
Previous: Carbon Steel Concentric Reducer, ASTM A234 WPB, 16 x 12 Inch
Next: ASTM A403 WP316L Concentric Reducer, 30 x 20 Inch, WT 3/8 IN
Key Specifications / Features
 Model No.: LPF-240403-PR-01    Hits: 11
Our ductile iron reducer, designed to meet stringent standards including EN 545, EN 598, ISO 2531, ANSI, and AWWA, features dimensions of 8 inches by 6 inches (DN200 x DN150) with a pressure rating of PN16 or Class 150 LB. With flanged ends for easy installation, this reducer ensures reliable performance in various piping systems.
Request a quoteShare
Tags: Ductile Iron Reducer,EN 545 Reducer,EN 598 Reducer,ISO 2531 Reducer,PN16 Reducer,Class 150 LB Reducer,Flanged Reducer.

Detail Information


Product Name: DI Flanged Reducer
Size: DN200 X DN150 MM, 8 Inch x 6 Inch
Pressure: PN16, Class 150 LB
Material: Ductile Iron
Ends: Flange Type

Product Range
Size Range: DN50-DN2600 mm
Pressure Range: PN10, PN16, PN25, PN40
Standard: EN 545, EN 598, ISO 2531, ANSI/AWWA
Color: Blue, Black, Red, etc.
Surface Finish: Cement Lining Inside and Zinc and Bitumen Coating Outside
Package: Standard Wooden Pallets or Wooden Cases




Post URL: https://www.landeepipefitting.com/en-545-en-598-reducer-ductile-iron-8-x-6-in-pn16-flanged.html
Landee is a professional industrial pipe fitting manufacturer and be well accepted by customers all over the world, we has been producing Pipe Fitting for a variety of applications since 1985. welcome to access our website: https://www.landeepipefitting.com.
