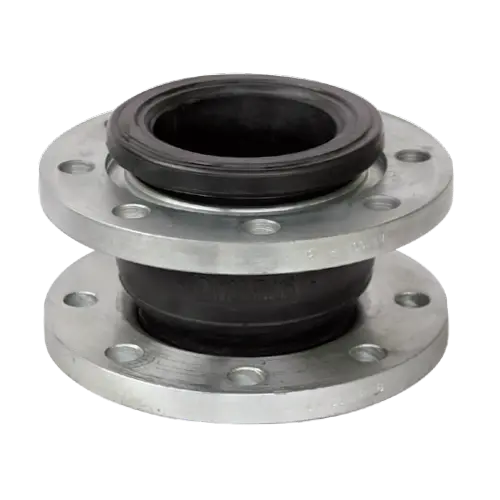

EPDM Rubber Flexible Joint, 1-1/4 - 24 Inch, Single Sphere

Name: EPDM Rubber Flexible Joint, 1-1/4 - 24 Inch, Single Sphere
SKU: lpf-20250208-pj-01
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Previous: EPDM Sealed Dismantling Joint, SS 316L, 14 IN, DN350, 150 LB
Next: Rubber Expansion Joint, 1-1/4 - 14 IN, 300 PSI, Twin Sphere

Key Specifications / Features

Model No.: LPF-20250208-PJ-01 Hits: 0

The EPDM Rubber Flexible Joint features a single sphere design with electroplated carbon steel flanges for enhanced durability and corrosion resistance. Available in sizes from 1-1/4 to 24 inches (DN32-DN600) and pressure ratings of 175 PSI, 200 PSI, and 250 PSI, this joint provides excellent flexibility and vibration isolation. It is ideal for use in pipelines handling water, chemicals, and other fluids, offering reliable performance in various industrial applications.

Request a quote Share

Tags: EPDM Pipe Joint,Rubber Flexible Joint,Single Sphere Pipe Joint,300 PSI Pipe Joint.

Detail Information

Product Name: Single Sphere Rubber Flexible Joint
Bellows Material: EPDM Rubber
Flange Material: Electroplated Carbon Steel
Size Range: 1-1/4 - 24 Inch, DN32-DN600
Working Pressure: 300 PSI (175 PSI/200 PSI/250 PSI available upon request)
Connection Ends: Flange Drilling to ASME B16.5 Class 150 LB
Temperature Range: 0°C to 80°C
Vacuum Capacity: 700 mm/Hg

Post URL: https://www.landeepipefitting.com/epdm-rubber-flexible-joint-1-1-4-24-inch-single-sphere.html
Landee is a professional industrial pipe fitting manufacturer and be well accepted by customers all over the world, we has been producing Pipe Fitting for a variety of applications since 1985. welcome to access our website: https://www.landeepipefitting.com.
