Essential Factors in Metal Gasket Selection
Posted: 04/08/2024 06:40:22 Hits: 21
Metal gaskets are vital for sealing engineering across diverse industrial applications. Selecting the right gasket involves analyzing key factors such as compression rates, chemical compatibility, temperature, and pressure. In this comprehensive analysis, we delve into the crucial aspects that drive the selection process of metal gaskets, guiding engineers towards informed decisions for ensuring system safety, reliability, and long-term stability.
Key Factor Analysis and Selection

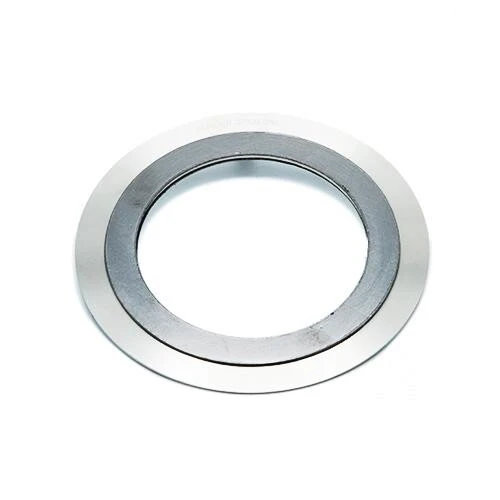

Metal gaskets are essential in sealing engineering, made of thin steel strips arranged in V or W shapes with fillers to withstand tough conditions. Customized material combinations fight chemical corrosion, while adjustable density meets clamping force requirements. Inner reinforcement and outer positioning rings improve stability and alignment, ensuring reliability in diverse engineering tasks. When choosing metal gaskets, it's crucial to carefully consider the following key factors.
Compression and recovery rates: Compression rate and recovery rate are important parameters for evaluating gasket elasticity. A high compression rate means the gasket is suitable for irregular surfaces, enhancing friction and reducing leakage risks, while a high recovery rate requires greater clamping force to maintain good sealing performance.
Sealing capability: The sealing performance of the gasket directly relates to system safety and cost-effectiveness. Through test data, the leakage rate of the gasket at different thicknesses can be evaluated, thus selecting the appropriate thickness and material.
Chemical compatibility: The chemical compatibility between the gasket and the medium is crucial for sealing performance. Selecting materials resistant to chemical corrosion can effectively prolong the gasket's service life.
Creep: Gasket creep can lead to load reduction, affecting sealing performance. It is important to note the degree of creep and regularly inspect flange fastenings to ensure sealing performance.
Temperature: Temperature significantly affects gasket performance. Gaskets may lose elasticity at high temperatures and become brittle at low temperatures, so the working temperature range needs to be considered when selecting gaskets.
Pressure: The load-bearing capacity of the gasket is closely related to pressure and requires selecting the appropriate gasket type based on actual operating conditions to ensure safe operation.
Gasket thickness: Gasket thickness affects sealing performance and load-bearing capacity. Choosing the appropriate thickness can reduce leakage risks and adapt to different surface roughness.
Sealing capability: The sealing performance of the gasket directly relates to system safety and cost-effectiveness. Through test data, the leakage rate of the gasket at different thicknesses can be evaluated, thus selecting the appropriate thickness and material.
Chemical compatibility: The chemical compatibility between the gasket and the medium is crucial for sealing performance. Selecting materials resistant to chemical corrosion can effectively prolong the gasket's service life.
Creep: Gasket creep can lead to load reduction, affecting sealing performance. It is important to note the degree of creep and regularly inspect flange fastenings to ensure sealing performance.
Temperature: Temperature significantly affects gasket performance. Gaskets may lose elasticity at high temperatures and become brittle at low temperatures, so the working temperature range needs to be considered when selecting gaskets.
Pressure: The load-bearing capacity of the gasket is closely related to pressure and requires selecting the appropriate gasket type based on actual operating conditions to ensure safe operation.
Gasket thickness: Gasket thickness affects sealing performance and load-bearing capacity. Choosing the appropriate thickness can reduce leakage risks and adapt to different surface roughness.
In practical applications, it's essential to comprehensively consider these factors and select accordingly. For instance, in high-temperature, high-pressure environments, opt for metal gaskets with high recovery rates and heat resistance. For corrosive media, choose materials with good chemical compatibility. Regular inspection and maintenance are crucial for ensuring sealing system stability. Thus, selecting metal gaskets involves weighing engineering requirements and gasket performance to ensure system safety, reliability, and long-term stability.
