Key Specifications / Features
 Model No.: LPF-20241026-PJ-02    Hits: 3

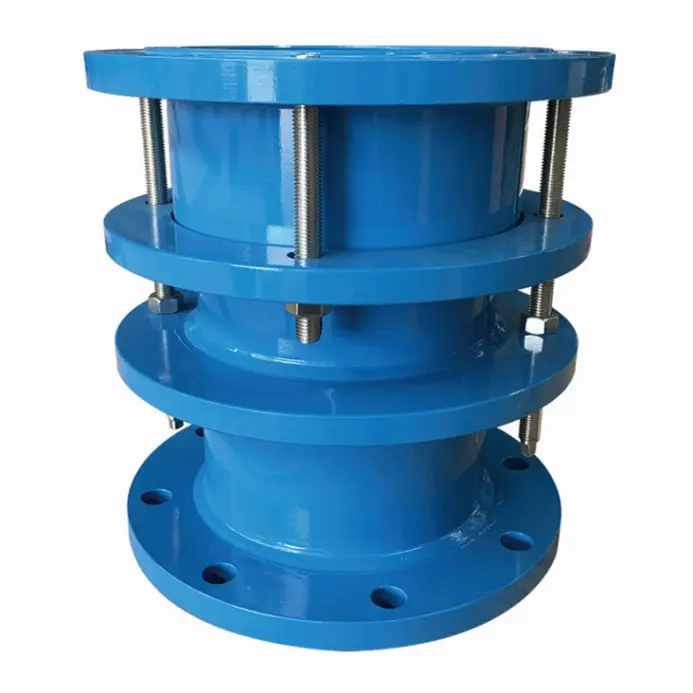

The Sleeve Limited Expansion Joint, offered by our company, features double flanged ends and is constructed from ASTM A536 Grade 65-45-12, steel, and PVC materials. It accommodates sizes from DN65 to DN3600 and pressure ratings of PN10 to PN40, with a diameter range of DW 76-3620 mm

Detail Information


Product Name: Sleeve Limited Expansion Joint, Double Flanged
Size Range: DN65-DN3600, 2-1/2 - 142 Inch
DW: 76-3620 mm
Expansion Quantity: 50-140 mm
Working Pressure: PN10, PN16, PN25, PN40
Material: Ductile Iron ASTM A536 Grade 65-45-12 / Steel / PVC
Flange: EN 1092-2
Coating: EN 30677
Test: EN 12266-1
Flange Connection Dimensions: 0.6 Mpa / 1.0 Mpa
Maximum Temperature: -10°C to +70°C
Applications: Suitable for Potable Water, Neutral Liquids, and Sewage.




Post URL: https://www.landeepipefitting.com/sleeve-limited-expansion-joint-dn65-dn3600-double-flanged.html
Landee is a professional industrial pipe fitting manufacturer and be well accepted by customers all over the world, we has been producing Pipe Fitting for a variety of applications since 1985. welcome to access our website: https://www.landeepipefitting.com.
