The Processing and Welding of Stamping Elbow

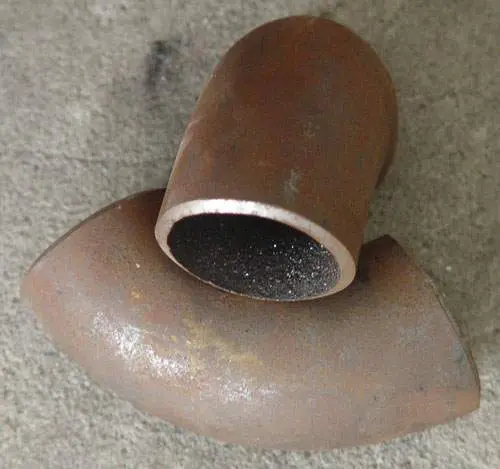

Stamping elbow, whose full name is stamping welding elbow, is produced through using pressing tool to make the board having the same material with the pipe become a half block of annular elbow and then weld the two half elbow together. Due to the difference of various pipe welding standards, and site operation is usually welding according to pipe weld grade, therefore, it is also known as the two-half welding elbow.



The processing of stamping elbow:

Stamping elbow processing is by means of the power of conventional or special equipment, resulting in the deformation of sheet metal in the mould, thereby to gain a certain shape, size and function. Sheet metal, stamping mould and equipment are the three elements of elbow processing. Forging processing is a kind of metal cold deformation processing method, so it is also called cold stamping or sheet metal stamping. Currently on the market most of the stamping elbow has high pressure and thick wall, among which intermediate frequency cannot push will use stamping process.



The welding of stamping elbow:

During welding, stamping elbow after heating can release carbide, and the release carbide will affect the performance of the stamping elbow, lower corrosion resistance and mechanical properties. Above is about the matters need to be aware of when using stamping elbow, which needs certain methods and matters to ensure its good use value and performance.



Stamping elbow after welding is harder, so it is easy to have cracks. You can choose different electrode for welding to guarantee the quality of welding stamping elbow. If using the same type of chromium stamping elbow electrode welding, it must experience above 300 ℃ preheat and 700 ℃ slow cooling after welding. If you cannot undertake the weldment heat treatment after welding, you'd better choose chrome-nickel stamping elbow. Different kinds of electrode in use have different performance and characteristics, you should select according to various requirements, so as to ensure the quality of the welding stamping elbow.
